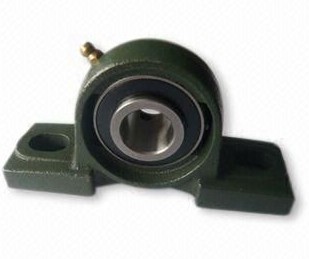

Pillow Block Bearing Units-Shaft Block Bearings ucp208
Pillow Block Bearing Units-Shaft Block Bearings ucp208
pillow block bearings are a form of mounted bearing used to provide load support for a rotating shaft.UCP 200 and UCF 200 series
pillow block bearings are a form of mounted bearing used to provide load support for a rotating shaft. Selection of the appropriate bearings can be accomplished based on the shaf t size and the radial and thrust load requirements. Pillow block bearings are designed to support a shaft: the mounting surface is on a parallel line with the axis of the shaft. Elongated bolt holes in the base or feet of the unit allow for some adjustment and easy mounting of the pillow block bearing.
Unit No. | Dimensions mm | Bolt Size | Weight | |||||||||||
d | h | a | e | b | s1 | s2 | g | w | t | B | n | mm | (kg) | |
UCP201 | 12 | 30.2 | 127 | 95 | 38 | 13 | 19 | 14 | 62 | 44.5 | 31 | 12.7 | M10 | 0.69 |
UCP202 | 15 | 30.2 | 127 | 95 | 38 | 13 | 19 | 14 | 62 | 44.5 | 31 | 12.7 | M10 | 0.69 |
UCP203 | 17 | 30.2 | 127 | 95 | 38 | 13 | 19 | 14 | 62 | 44.5 | 31 | 12.7 | M10 | 0.68 |
UCP204 | 20 | 33.3 | 127 | 95 | 38 | 13 | 19 | 15 | 71 | 48 | 34.1 | 14.3 | M10 | 0.66 |
UCP205 | 25 | 36.5 | 140 | 105 | 38 | 13 | 19 | 15 | 71 | 48 | 34.1 | 14.3 | M10 | 0.81 |
UCP206 | 30 | 42.9 | 165 | 121 | 48 | 17 | 20 | 17 | 84 | 53 | 38.1 | 15.9 | M14 | 1.24 |
UCP207 | 35 | 47.6 | 167 | 127 | 48 | 17 | 20 | 18 | 93 | 59.5 | 42.9 | 17.5 | M14 | 1.58 |
UCP208 | 40 | 49.2 | 184 | 137 | 54 | 17 | 20 | 18 | 100 | 69 | 49.2 | 19 | M14 | 1.89 |
UCP209 | 45 | 54 | 190 | 146 | 54 | 17 | 20 | 20 | 106 | 69 | 49.2 | 19 | M14 | 2.14 |
UCP210 | 50 | 57.2 | 200 | 159 | 60 | 20 | 23 | 21 | 113 | 74.5 | 51.6 | 19 | M16 | 2.66 |
UCP211 | 55 | 63.5 | 219 | 171 | 60 | 20 | 23 | 23 | 125 | 76 | 55.6 | 22.2 | M16 | 3.31 |
UCP212 | 60 | 69.8 | 241 | 184 | 70 | 20 | 23 | 25 | 138 | 89 | 65.1 | 25.4 | M16 | 4.9 |
UCP213 | 65 | 76.2 | 265 | 203 | 70 | 25 | 28 | 27 | 150 | 89 | 65.1 | 25.4 | M20 | 5.15 |
UCP214 | 70 | 79.4 | 266 | 210 | 72 | 25 | 28 | 27 | 156 | 74.6 | 30.2 | M20 | 6.2 | |
UCP215 | 75 | 82.6 | 275 | 217 | 74 | 25 | 28 | 28 | 162 | 77.8 | 33.3 | M20 | 7.16 | |
UCP216 | 80 | 88.9 | 292 | 232 | 78 | 25 | 28 | 30 | 174 | 82.6 | 33.3 | M20 | 8.1 | |
UCP217 | 85 | 95.2 | 310 | 247 | 83 | 25 | 28 | 32 | 185 | 85.7 | 34.1 | M20 | 9.81 | |
UCP218 | 90 | 101.6 | 327 | 262 | 88 | 27 | 30 | 33 | 198 | 96 | 39.7 | M22 | 11.96 |
We export high quantities Pillow Block Bearing Units-Shaft Block Bearings ucp208 and relative products, we have huge stocks for Pillow Block Bearing Units-Shaft Block Bearings ucp208 and relative items, we supply high quality Pillow Block Bearing Units-Shaft Block Bearings ucp208 with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in Pillow Block Bearing Units-Shaft Block Bearings ucp208,plz email us admin@tradebearings.com or send the purchase details to trade b2b website(www.tradebearings.com) so the suppliers will contact you directly
